doi: 10.58763/rc2024217



Scientific and Technological Research Article



Technological innovation from a system dynamics approach



La innovación tecnológica desde un enfoque de dinámica de sistema



Martha Inés Kammerer David1   *, Benjamín Murgas Téllez1  *



ABSTRACT

Technological development and innovation models have evolved over time and in an increasingly globalized context. Their implementation results in the strengthening of competitiveness through the strategic development of human and technical capabilities. This research aims to design a model for the management of technological innovation with a system dynamics (SD) approach. The construction of the SD model is based on the analysis of the models found in the literature on the subject; the methodology applied includes the definition of the problem, the causal loop diagram, the flow diagram, the summary of the main equations, and the validation of the model. The main variables identified were capital available for investment in innovation, capital invested for high-level human resources training, human resources with high-level training, capital invested in innovation projects, innovation service contracts, profits from innovation service contracts, and initial capital for investment in innovation.



Keywords: system dynamics, innovation management, technological innovation, management models.



JEL Classification: C61; O31; O32



RESUMEN

Los modelos de desarrollo tecnológico e innovación han evolucionado con el paso del tiempo y en un contexto cada vez más globalizado. Su implementación redunda en el fortalecimiento de la competitividad a partir del desarrollo estratégico de sus capacidades humanas y técnicas. La presente investigación tiene como objetivo diseñar un modelo para la gestión de la innovación tecnológica con un enfoque de dinámica de sistemas (SD). La construcción del modelo SD tiene como referencia el análisis de los modelos encontrados en la literatura sobre la temática; la metodología aplicada plantea la definición del problema, el diagrama de bucle causal, el diagrama de flujos, el resumen de las principales ecuaciones y la validación del modelo. Se identificaron como variables principales: capital disponible para inversión en innovación, capital invertido para formación del recurso humano en alto nivel, recurso humano con formación en alto nivel, capital invertido en proyectos de innovación, contratos de servicio de innovación, utilidades de contratos de servicio de innovación y capital inicial para inversión en innovación.



Palabras clave: dinámica de sistemas, gestión de la innovación, innovación tecnológica, modelos de gestión.



Clasificación JEL: C61; O31; O32



Received: 17-09-2023                              Revised: 25-11-2023                               Accepted: 20-12-2023                                Published: 15-01-2024



Editor: Carlos Alberto Gómez Cano



1Universidad de La Guajira. La Guajira, Colombia.



Cite as: Kammerer, M. y Murgas, B. (2024). La innovación tecnológica desde un enfoque de dinámica de sistema. Región Científica, 3(1), 2024217. https://doi.org/10.58763/rc2024217







INTRODUCTION



Human development in itself demands increasingly better living conditions based on the search for innovative solutions for their development in society. In the current global, competitive, and changing environment that organizations face, innovation is emerging as a tool that generates competitive advantages (Huang et al., 2023). There is a growing international consensus on the importance of knowledge and learning as a central axis of economic development (Gortari & de Santos, 2006; Jiménez & Palácio, 2010). In this sense, Briede and Rebolledo (2010) recognize that the process of innovating products and services is increasingly difficult in a globalized world with a wide variety of offers.



The development of societies, especially in Latin America, implies generating governmental strategies that increasingly increase access to science and technology (Khan et al., 2021; Lillford & Hermansson, 2021), through incentives to increase their production and socialization. Several investigations show how the development of innovation capabilities influences the creation of competitive advantages (Sossa et al., 2012). For Morales et al. (2012), innovation is present in the different economic and social changes achieved over time since the contributions of the classical and neoclassical schools of economics. He also recognizes economist Joseph Schumpeter as the author of the first formal approach to the concept.



Subsequently, concepts such as "innovation management" appeared; innovation systems derived from the emergence and development of industry and production processes; the need to formalize the R&D process and understand the environment in which innovations are developed and applied (Geissinger et al., 2023). In an increasingly globalized world dominated by free trade, teamwork and the integration of strategies between different science and technology centers, both public and private, that promote technological innovation in the design of production processes and services are of great importance (Abello, 2007).



There are many meanings for the types of innovation, but no classification integrates them in their totality. Some of the classifications are: product innovations, process innovations (those directly related to the concept of technological innovation), and marketing and organizational innovations; on the other hand, the conception of change or degree of novelty in the product (Mera & Paredes, 2014).



In this documentary research, first of all, a conceptual review of management, innovation, technology, and centers of innovation and technological development was made. Secondly, the way in which the innovation process has evolved was reviewed, and subsequently, the different models for the management of the innovation process within institutions were observed. This document's main purpose is to create a model from a system dynamics (SD) approach for the management of technological innovation as a descriptive and analytical tool that allows better planning and direction of efforts in the sector.



The document's structure, in principle, contains a review of the relevant literature on innovation and SD. Finally, conclusions, contributions, and acknowledgments are outlined.



METHODOLOGY

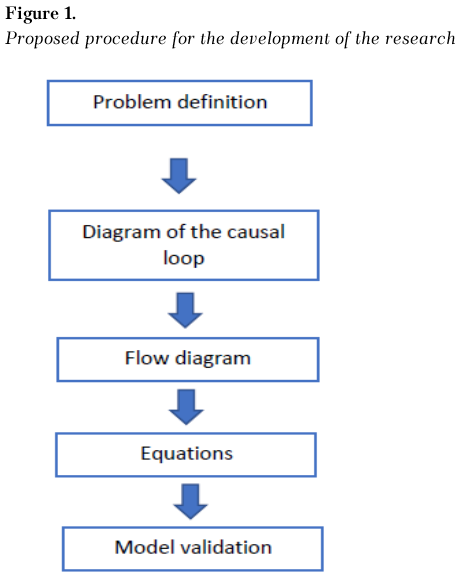

A quantitative descriptive research was developed, based on the application of the concepts of system dynamics, to determine causal relationships between different variables that influence innovation management. The research is structured in two main phases; the first is a systematic review with the objective of clarifying the main concepts related to the management of technological innovation. The descriptors used in the search were: innovation, innovation management, technological management, and innovation management models.  The second one, where an SD model is developed based on the analysis of the models found in the literature.



Source: own elaboration



The procedure is structured in five stages:



Stage 1. Definition of the problem. The work team must be sufficiently exhaustive in the identification of the different variables that influence the proper functioning of the process; this will allow the goals and objectives of the mathematical model to be clear. Teamwork meetings can be held to confront criteria, the participative observation of processes, or individual and collective photographs.



Stage 2. Causal loop diagram. The causal loop diagram is constructed based on the influence-dependence relationships found in the previous step. An analysis of their interactions is carried out, and the modeling should not lose sight of the objectives of the problem, its components, and variables.



Step 3. Flow diagram. For the structuring of the flow model, the causal model, the identification of the level variables, the input and output flows of each level, and the input-output relationships for each auxiliary variable must be taken into account. In this research, the Vensim PLE software was used to represent the stocks and the flow diagram.



Stage 4. Equations. The interaction of various factors in the causality diagram of the system dynamics model is actually a mathematical relationship, and the structure flow diagram is specific to this mathematical relationship between the variables. According to the feedback loop of the interaction between each module of the system, as well as the factual data and related research theory, the quantitative equation between the variables is established (Xue & Xu, 2017).



Stage 5. Model validation. It consists of testing the proposed model to assess whether it is consistent with the stated purpose. An analysis of the behavior of the significant variables of the model must be performed once the modeling has been carried out with the established parameters.



RESULTS AND DISCUSSION



A large group of researchers and international cooperation organizations have made many contributions that have helped us to understand the concepts of research, development, and innovation in R&D&I (de Normalización and AENOR, 2006). Innovation management is strategically a very important management tool for its contribution to the success and development of the organization (Asociación de la Industria Navarra, 2008).



Innovation management



It accounts for the organization and management of the different resources available to the company, aimed at increasing the creation of new knowledge and technical ideas that, through their application or use, make it possible to produce new products, processes, and services, improve existing ones, or contribute to the improvement of the distribution or marketing phase. They also consider that innovation management is crystallized through the execution of the following eight phases: 1) Innovation as a strategy, 2) Creativity and Innovation, 3) Strategic Surveillance, Benchmarking and Competitive Intelligence, 4) Project Management, 5) Innovation Financing, 6) Innovation Assurance, 7) Innovation Exploitation and 8) Knowledge Management.



Technology Management



Technology management is the process of planning, organizing, directing, and controlling the activities related to the technology necessary to execute the processes developed in the company. In addition, Solleiro (2009) conceives it as the set of techniques that allow an organization to develop and execute its innovation and improvement plans to maintain or increase its competitive position. Therefore, it can be concluded that technological management is the optimal way to combine human, technical and financial resources for the fulfillment of the organization's objectives, which is materialized in the technological strategy and in the strategic plan for technological development (Gallego, 2005), through the development of the functions of: a) Inventorying, b) Monitoring, c) Evaluating, d) Enriching, e) Optimizing and f) Protecting.



Technological innovation management models



Innovation management is not unified in the development of a single model, but there is a wide variety of approaches and levels of complexity. Table 1 provides an analysis of some innovation management models. Among the relevant concepts that help to reinforce the proper understanding of what concerns R&D&I, we have: research, technological development, and innovation, among others.



Table 1.

Analysis of Technological Innovation Management Models

Innovation management model

Author

Characteristics

Basic Functions Innovation Management

(Saren, 1984)

The sustainability of the company is ensured by implementing the basic functions: inventory, evaluate, monitor, optimize and protect.

Technology innovation management model (COTEC)

(Cotec, 2001)

Dynamic model. It proposes five functions: monitor, focus, train, implement and learn.

Generalitat de Catalunya

(CIDEM, 2002)

Innovation management is consolidated in four functions: generation of new concepts, product development, reengineering of production processes, reengineering of commercialization processes; supported by knowledge and technology management.

Kaplan y Norton

(Kaplan y Norton, 2004)

It is based on an innovative strategy at the operational level, which is part of the company's general innovation strategy as a way to achieve competitiveness. It is perceived from the four fundamental perspectives of the Balanced Scorecard.

R&D&I Management Systems (Standard UNE 166.002)

(de Normalización y AENOR, 2006)

It addresses the responsibility of managers in the innovation management process as a key process, the support processes, with the description of management tools, resources, measurement and system improvement actions.

Innovation in SMEs

(Arzola y Mejías, 2007)

R&D&I activities are based on: management responsibility, resource management, process development and the measurement and improvement of results.

Innovation in the Services Sector

(Salazar et al., 2010)

It is structured in seven fundamental functions: leadership, strategic planning, processes, customer satisfaction, organization, human resource competence and social responsibility.

Source: Own elaboration based on Arzola and Mejías (2007).



Application of the proposed procedure



Stage 1. Problem definition



The model's objective was defined as relating the technological innovation management variables with the decisions to train high-level human resources and the development of innovation projects to improve the company's products and processes. In addition, the generation of income through the execution of innovation service contracts, whose profit - once dividends are deducted - becomes the permanent source of financing for the innovation process.



The human resource with high-level training is a decisive variable because it generates man-hours with innovative capacity that directly impacts both innovation projects and innovation service contracts.



The main variables identified are: capital available for investment in innovation; capital invested for high-level training of human resources; human resources with high-level training; capital invested in innovation projects; innovation service contracts; profits from innovation service contracts and initial capital for investment in innovation.



Table 2 shows a reference framework by topic, of research works carried out under the system dynamics approach and related to innovation processes.



Table 2.

Themes of system dynamics in relation to innovation

Theme

Authors

Important aspects

Coevolution of innovation

(Castellacci, 2018; Luna Reyes & Gil Garcia, 2014)

·        Interactions between all these variables in the development of digitalization in government.

·        Main dimensions: physical capital, R&D and innovation, human capital and population dynamics.

(Chen & Wakeland, 2016; Choi et al., 2016; Nieuwenhuijsen et al., 2018; Timma et al., 2015; Tsai & Hung, 2014)

·        Examines the system from a functional perspective and operationalizes the link between forecasting and planning.

·        Combines empirical study with system dynamics modeling

·        Integrated multi-generation diffusion model (market and product)

·        Future technology planning and strategic deployment

·        Diffusion of cloud computing is affected by quality of service, infrastructure maturity, price, technological maturity

·        Identification of critical technologies

·        Product and innovation processes are carried out in parallel, rather than sequentially.

Foresight and dissemination of technological innovation

(Musango et al., 2012; Walrave & Raven, 2016)

·        Interaction between competing technologies

·        Integrates the concept of "innovation drivers" with the notion of "transition pathways," which was developed as part of multilevel framework thinking

·        Technology is seen as an outcome of innovation

·        Emerging technological innovation

Technological innovation systems

(Grüneisen et al., 2015; Hsieh & Chou, 2018; Kasperek et al., 2014)



·        Mechanisms for assessing the impact of innovation processes.

·        Analysis and forecasting of the impact of cyclical changes within innovation processes.

·        Types of cycles: Internal cycles (engineering change, manufacturing resources and team-building processes) and external environmental cycles (dependencies and demands related to government and customers).

(Xu et al., 2012; Xue & Xu, 2017)

·        Analysis of IT innovation capability: University-industry cooperation, IT personnel and business R&D investment, organizational arrangements, reasonable strategy and an innovative culture.

·        Synergy between technological and marketing innovation is of great importance for the internalization of introduced technologies and resources.

Impact of innovation processes

(Gu et al., 2011; Zaim et al., 2013)

·        Components of knowledge: creation or generation, storage or retrieval, transfer or exchange, and utilization.

·        Development of computer simulation models that portray accumulation and feedback processes.

(Qian et al., 2012; Wu et al., 2010)

·        Identification of the differences between risk-based decision making for technological innovation from the point of view of the entrepreneurial team and the traditional problem of individual decision making.

·        Incident response capability analysis to control the severity of incidents.

·        Sustainability assessment of technologies

Innovation capacity

(Ramírez, 2017; Robledo & Ceballos, 2008)

·        Integrating concepts from the sustainable livelihoods framework and technology management.

·        Evolution of the process of introducing new technologies.

·        Recognizing the role of R&D within SMEs.

·        Balanced Scorecard for small and medium-sized enterprises based on the management of technological innovation.

·        The dynamics of a logistics network is analyzed from the use of technologies for the redesign of any of its nodes.

Source: own elaboration



Stage 2. Causal loop diagram



Figure 2 shows the causal loop diagram; the model shows the percentage of capital available for investment in innovation, such as the distribution made, on the one hand, for the training of high-level human resources and, on the other, the investment earmarked for innovation projects.



Source: own elaboration

Note: the figure appears in its original language



Stage 3. Flowchart

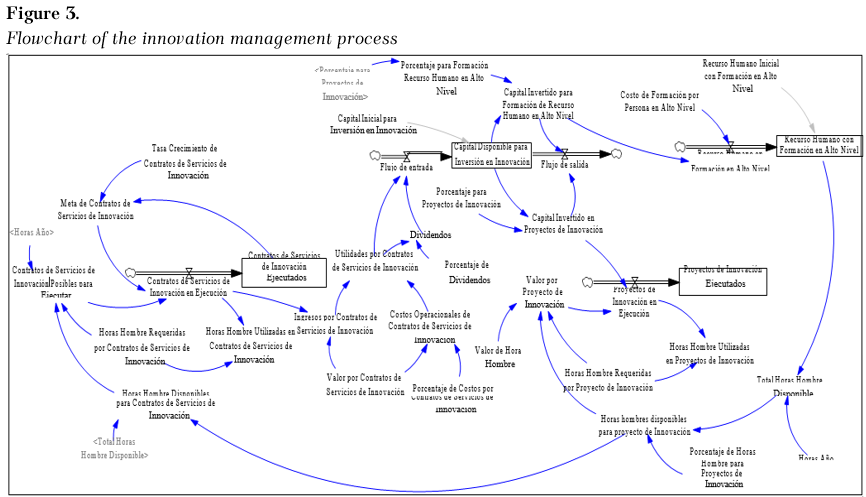

Figure 3 shows the flow diagram, and was constructed based on the causal loop diagram. Four state variables are identified: capital available for investment in innovation, human resources with high-level training, investment projects executed, and innovation service contracts executed. The inflow in the variable Capital available for investment in innovation corresponds to profits, after deducting dividends, while the outflow corresponds to the capital invested in training of high-level human resources, plus the capital invested in innovation projects.



Source: own elaboration

Note: the figure appears in its original language



The input flows of the other state variables are human resources in high-level training, innovation projects in execution and innovation service contracts in execution. The other variables are auxiliary, constant, and related by means of the arcs or arrows.



Stage 4. Equations



Table 3.

System of equations of the model

No

Variables

Type

Unit

Formula

1

Capital Available for Innovation Investment

Level

pesos

INTEG (Inflow-Outflow, Initial Capital for Investment in Innovation)

2

Seed Capital for Investment in Innovation

Constant

pesos



3

Capital Invested in Innovation Projects

Auxiliary

pesos

Capital Available for Investment in Innovation*Percentage for Innovation Projects

4

Capital Invested for Training of

High Level Human Resources

Auxiliary

pesos

Capital Available for Investment in Innovation*Percentage for Training

High Level Human Resources

5

Innovation Services Contracts

Executed

Level

contracts

INTEG (Innovation Services Contracts in Execution, 0)

6

Innovation Services Contracts in Execution

Auxiliary

contracts

IF THEN ELSE(Innovation Services Contracts Target<=Innovation Services Contracts Possible to Execute, Innovation Services Contracts Target, Innovation Services Contracts Possible to Execute)

7

Innovation Services Contracts Possible to Execute

Auxiliary

contracts

IF THEN ELSE (Man Hours Required for Innovation Services Contracts <=Man Hours Available for Innovation Services Contracts, INTEGER (Yearly Hours / Man Hours Required for Innovation Services Contracts), 0)

8

Training Cost per Person in

High Level

Auxiliary

pesos/person

RANDOM UNIFORM( 7.5e+07, 1.5e+08, 0)

9

Operating Costs of Innovation Services Contracts

Auxiliary

pesos

Value of Innovation Services Contracts*Percentage of Innovation Services Contract Costs

10

Dividends

Auxiliary

pesos

Profit from Innovation Services Contracts*Percentage of Dividends

11

Inflow

Auxiliary

pesos

Profits from Innovation Services Contracts-Dividends

Source: own elaboration



Stage 5. Model validation



Table 4.

Parameters established for model validation

Parameters

Initial value

Unit

Seed Capital for Investment in Innovation

2000.000.000

pesos

Innovation Services Contracts Executed

0

contracts

Training Cost per Person at a High Level

75.000.000 Msc.

150.000.000 PhD

pesos/person

Hours Year

Constant

hours

Man Hours Required for Innovation Services Contracts

240 a 2880

hours

Man Hours Required per Innovation Project

240 a 2880

hours

Percentage of Costs for Innovation Services Contracts

0.6

percentage

Dividend Percentage

0.1

percentage

Percentage of Man Hours for Innovation Projects

0.5

percentage

Percentage for Innovation Projects

0.7

percentage

Innovation Projects Implemented

0

project

Initial Human Resources with High Level Training

10

people

Innovation Services Contracts Growth Rate

0.1

percentage

Value of Man Hour

55.000 MSc

65.000 PhD

pesos

Value of Innovation Services Contracts

20.000.000 a 100.000.000

pesos

Source: own elaboration

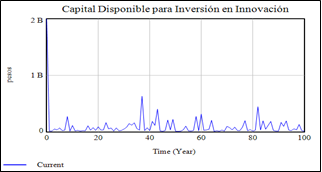

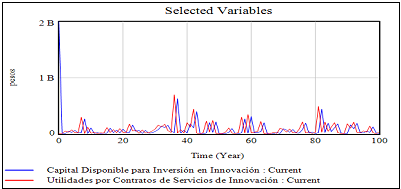

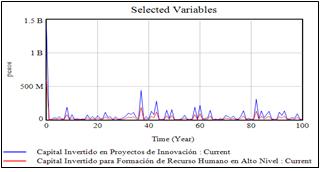

Figure 4 (a) shows the behavior of the capital available for investment, which, at the beginning, presents a high level due to the effect produced by the initial capital. Subsequently, its trend decreases, because it depends only on the level of profits.  Figure 4 (b) shows the behavior of the capital invested in innovation projects versus the capital allocated for high-level human resource training, where the former shows a higher investment due to the higher percentage allocated to it. Figure 4 (c) shows the behavior of human resources with high-level training, which starts at 10 because it is the human resource with high-level training that exists initially.

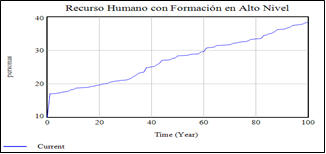

Then, Figure 4 (d) shows that, as the human resource with high-level training grows, so do the innovation service contracts executed and the innovation projects executed; this is due to the increase in available man-hours with innovation capacity, which have a direct impact on their growth. Finally, Figure 4 (e) shows the behavior of the capital available for investment in innovation, compared to the profits per innovation service contract, where, at the beginning, there is a higher level of capital available for investment due to the effect of the initial capital, but from now on the behavior is practically the same, because the capital for investment corresponds to the profits.





Figure 4.

Behavior of the significant variables of the model

(a)

(b)

(c)

(d)

(e)

Source: own elaboration

Note: the figures appears in its original language



CONCLUSIONS



A model based on system dynamics has been developed, which provides an integral perspective to analyze the complex interactions between several key variables in the technological innovation process. This model focuses mainly on three fundamental aspects: the competence of human resources in generating innovation, investment in innovation projects, and income generation through the provision of innovative services.



This model focuses on the company's internal innovation and does not take into account the transfer of innovation from external sources. In other words, it concentrates on how the organization uses its internal resources and capabilities to drive innovation. However, it is relevant to recognize that innovation can also come from external sources, such as strategic alliances, collaborations with other companies, or the acquisition of proprietary technologies. This opens the door to future research that could expand the model to address the innovation transfer from the outside and assess its impact on the technological innovation process.



In summary, this system dynamics model provides a valuable tool for understanding and managing the complex dynamics related to technological innovation in the business environment. Although it has been limited to analyzing internal innovation, its flexibility allows for an expansion to incorporate elements of external innovation in subsequent research, which would further enrich our understanding of this process in the business environment..



REFERENCES



Abello, R. (2007). Factores claves en las alianzas universidad – industria como soporte de la productividad en la industrial local. Investigación y Desarrollo, 15(1), 208–225. http://www.redalyc.org/articulo.oa?id=26815108



Arzola, M., y Mejías, A. (2007). Modelo conceptual para gestionar la innovación en las empresas del sector servicios. Revista Venezolana de Gerencia, 12(37), 66–79. http://www.redalyc.org/articulo.oa?id=29003706



Asociación de la Industria Navarra, A. (2008). Guía práctica: La gestión de la Innovación en 8 pasos. Anain - Agencia Navarra De Innovación, 104. https://www.studocu.com/ec/document/instituto-tecnologico-bolivariano-de-tecnologia/administracion/01-guia-practica-la-gestion-de-la-innovacion-en-8-pasos-autor-asociacion-de-la-industria-navarra/36333803



Briede J., y Rebolledo, A. (2010). Nuevos modelos para la innovación en el diseño conceptual de productos : “Mapa del estado del arte de la propuesta conceptual". Theoria, 19(1), 31–39. http://www.ubiobio.cl/miweb/webfile/media/194/v/v19-1/2.pdf



Castellacci, F. (2018). Co-evolutionary growth : A system dynamics model. Economic Modelling, 70, 272–287. http://doi.org/10.1016/j.econmod.2017.11.010



Chen, H., Yu, J., y Wakeland, W. (2016). Generating technology development paths to the desired future through system dynamics modeling and simulation. Futures, 81, 81–97. http://doi.org/10.1016/j.futures.2016.01.002



Choi, K., Narasimhan, R., y Kim, S. (2016). Opening the technological innovation black box: The case of the electronics industry in Korea. European Journal of Operational Research, 250(1), 192–203. http://doi.org/10.1016/j.ejor.2015.08.054



Cotec, F. (2001). Gestión de la Innovación y la Tecnología en la Empresa. Madrid: Fundación COTEC.

de Normalización, A. E., y AENOR, C. (2006). Norma 166002. Gestión de la I+ D+ i: Requisitos del Sistema de Gestión de la I+ D. Madrid. 24p. https://www.aenor.com/certificacion/idi/gestion



Gallego J. (2005). Fundamentos de la Gestion Tecnologica e Innovacion. Tecno Lógicas, 15, 113-131. http://www.redalyc.org/articulo.oa?id=344234271005



Geissinger, A., Laurell, C., Öberg, C., y Sandström, C. (2023). Social media analytics for innovation management research: A systematic literature review and future research agenda. Technovation, 123, 102712. https://doi.org/10.1016/j.technovation.2023.102712



Gortari, R., y de Santos, J. (2006). Estrategias para la comercialización del conocimiento: las prácticas  de un centro de I+D en México. REDES - Revista Hispana para el Análisis de Redes Sociales, 12(24), 115–130. https://www.redalyc.org/pdf/907/90702405.pdf



Grüneisen, P., Stahl, B., Kasperek, D., Maurer, M., y Lohmann, B. (2015). Qualitative System Dynamics cycle network of the innovation process of Product Service Systems. Procedia CIRP, 30, 120–125. http://doi.org/10.1016/j.procir.2015.02.189



Gu, L., Chen, S., y Ding, K. (2011). Research on System Dynamic Model of Chinese Innovation Talents Development. 2011 International Conference on Computer Science and Service System, Nanjing. https://doi.org/10.1109/CSSS.2011.5974382



Hsieh, Y. H., y Chou, Y. H. (2018). Modeling the impact of service innovation for small and medium enterprises: A system dynamics approach. Simulation Modelling Practice and Theory, 82, 84–102. http://doi.org/10.1016/j.simpat.2017.12.004



Huang, Y., Li, K., y Li, P. (2023). Innovation ecosystems and national talent competitiveness: A country-based comparison using fsQCA. Technological Forecasting and Social Change, 194, 122733. https://doi.org/10.1016/j.techfore.2023.122733



Jiménez, S., y Palácio, M. (2010). Comunicación de la ciencia y la tecnología en museos y centros interactivos de la ciudad de Medellín. Universidad de Humanística, 69(69), 227–257. https://revistas.javeriana.edu.co/index.php/univhumanistica/article/view/2292



Kaplan, R., y Norton, D. (2004). Mapas estratégicos: cómo convertir los activos intangibles en resultados tangibles. Gestión 2000.



Kasperek, D., Chucholowski, N., Maisenbacher, S., Lindemann, U., y Maurer, M. (2014). A method for impact analysis of cyclic changes within innovation processes of PSS. Procedia CIRP, 16, 205–210. http://doi.org/10.1016/j.procir.2014.02.008



Khan, A., Kamruzzaman, M., Rahman, M., Mahmood, M., y Uddin, M. (2021). Quality of life in the COVID-19 outbreak: influence of psychological distress, government strategies, social distancing, and emotional recovery. Heliyon, 7(3), e06407. https://doi.org/10.1016/j.heliyon.2021.e06407



Lillford, P., y Hermansson, A. (2021). Global missions and the critical needs of food science and technology. Trends in Food Science & Technology, 111, 800-811. https://doi.org/10.1016/j.tifs.2020.04.009



Luna, L., y Gil, J. (2014). Digital government transformation and internet portals: The co- evolution of technology, organizations, and institutions. Government Information Quarterly, 31(4), 545–555. http://doi.org/10.1016/j.giq.2014.08.001



Mera, O., y Paredes, E. (2014). Propuesta para la Creación del Centro de Investigación Desarrollo e Innovación I+D+I de Tecnologías de la Información de la Escuela Politécnica Nacional. [Tesis de maestría, Escuela Politécnica Nacional]. Repositorio EPN. https://bibdigital.epn.edu.ec/handle/15000/8990



Morales, E., Riaga, O., Cante, A., y Alejandra, M. (2012). Factores determinantes de los procesos de innovación: una mirada a la situación en Latinoamérica. Revista Escuela de Administración de Negocios, 72, 148–163. https://doi.org/10.21158/01208160.n72.2012.573



Musango, J., Brent, A., Amigun, B., Pretorius, L., y Müller, H. (2012). A system dynamics approach to technology sustainability assessment: The case of biodiesel developments in South Africa. Technovation, 32(11), 639–651. http://doi.org/10.1016/j.technovation.2012.06.003



Nieuwenhuijsen, J., Correia, G., Milakis, D., van Arem, B., y van Daalen, E. (2018). Towards a quantitative method to analyze the long-term innovation diffusion of automated vehicles technology using system dynamics. Transportation Research Part C: Emerging Technologies, 86, 300–327. http://doi.org/10.1016/j.trc.2017.11.016



Qian, Y., Fang, Y., y Gonzalez, J. (2012). Managing information security risks during new technology adoption. Computers and Security, 31(8), 859–869. http://doi.org/10.1016/j.cose.2012.09.001



Ramírez, M. (2017). Perspectiva de gestión de tecnología en redes logísticas. 8º Congreso Latinoamericano, Colombia. https://www.researchgate.net/publication/319987939_Management_Perspective_of_technology_in_logistics_networks



Robledo, J., y Ceballos, Y. F. (2008). Estudio de un proceso de innovación utilizando la dinámica de sistemas. Cuadernos de Administracion, 21(35), 127–159. https://revistas.javeriana.edu.co/index.php/cuadernos_admon/article/view/3973



Salazar, M., Arzola, M., y Pérez, E. (2010). Gestión de la innovación para las Pymis de Ciudad Guayana. Revista Venezolana de Gerencia, 15(51), 446–461. http://ve.scielo.org/scielo.php?script=sci_arttext&pid=S1315-99842010000300006



Saren, M. (1984). A classification and review of models of the intra‐firm innovation process. R&d Management, 14(11), 11–24. https://doi.org/10.1111/j.1467-9310.1984.tb00504.x



Solleiro, J. (2009). Gestión Tecnológica: Conceptos y Práticas. Plaza y Valdes, S.A. https://books.google.com.cu/books?id=gMeBMAEACAAJ



Sossa, J., Ruiz, S., Copete, H., Velez, A., y Medina, J. (2012). ADN de la innovación–de factores claves de innovación en 21 empresas del sector agroindustrial. Biotecnología en el Sector Agropecuario y Agroindustrial, 10(2), 197–206. https://revistas.unicauca.edu.co/index.php/biotecnologia/article/view/259



Timma, L., Bariss, U., Blumberga, A., y Blumberga, D. (2015). Outlining Innovation Diffusion Processes in Households Using System Dynamics. Case Study: Energy Efficiency Lighting. Energy Procedia, 75, 2859–2864. http://doi.org/10.1016/j.egypro.2015.07.574



Tsai, J. M., y Hung, S. W. (2014). A novel model of technology diffusion: System dynamics perspective for cloud computing. Journal of Engineering and Technology Management-JET-M, 33, 47–62. http://doi.org/10.1016/j.jengtecman.2014.02.003



Walrave, B., y Raven, R. (2016). Modelling the dynamics of technological innovation systems. Research Policy, 45(9), 1833–1844. http://doi.org/10.1016/j.respol.2016.05.011



Wu, D., Kefan, X., Hua, L., Shi, Z., y Olson, D. (2010). Modeling technological innovation risks of an entrepreneurial team using system dynamics: An agent- based perspective. Technological Forecasting and Social Change, 77(6), 857–869. http://doi.org/10.1016/j.techfore.2010.01.015



Xu, Q., Wu, Z., y Ren, Z. (2012). Synergy of innovation elements and evolution of innovative capability-With system dynamics modeling. 2012 International Symposium on Management of Technology, ISMOT. https://doi.org/10.1109/ISMOT.2012.6679558



Xue, C., y Xu, Y. (2017). Influence Factor Analysis of Enterprise IT Innovation Capacity Based on System Dynamics. Procedia Engineering, 174, 232–239. http://doi.org/10.1016/j.proeng.2017.01.125



Zaim, S., Bayyurt, N., Tarim, M., y Zaim, H., y Guc, Y. (2013). System Dynamics Modeling of a Knowledge Management Process: A Case Study in Turkish Airlines. Procedia - Social and Behavioral Sciences, 99, 545–552. http://doi.org/10.1016/j.sbspro.2013.10.524





FINANCING

None



DECLARATION OF CONFLICT OF INTEREST

None



AUTHORSHIP CONTRIBUTION

Conceptualization: Martha Inés Kammerer David and Benjamín Murgas Téllez.

Research: Martha Inés Kammerer David and Benjamín Murgas Téllez.

Methodology: Martha Inés Kammerer David and Benjamín Murgas Téllez.

Writing - original draft: Martha Inés Kammerer David and Benjamín Murgas Téllez.

Writing - revision and editing: Martha Inés Kammerer David and Benjamín Murgas Téllez.
